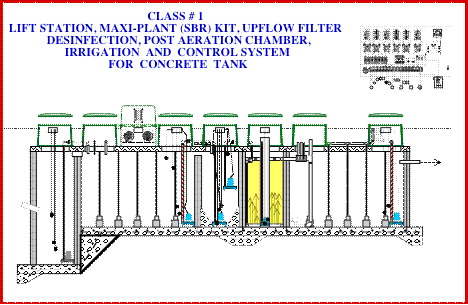

The Maxi-Plant's equipment package comes completely assembled and wired. Field assembly consists of installing the air diffusers system, fiberglass manway(s) and inter-connecting electrical wires to the control panel.
Standard electrical requirements for the Maxi-Plant TM series:
From 5,000 to 15,000 gallons per day:
1 phase, 60 Hz., 230 volt, 2 hot wires plus a neutral and a ground wire,
From 15,000 to 85,000 gallons per day:
3 phase, 230/460 volt, 60 Hz., 3 hot wires plus a neutral and a ground.
The timer, alarm and control system on all units are always 115 volts single phase powered.
Design Parameters: 100 gallons per person per day or 400 gallons per residence (Using standard flush toilets).
2100 cubic feet of air per pound of BOD5 and an estimated 0.17 lb. of BOD5 per person per day.
Three hours of uninterrupted settling prior to discharge in situations involving heavy seasonal use.
Water saving devices are necessary for the formula assumption.
The Mini-Plant series (Sequencing Batch Reactor-SBR) treats wastewater flows from 500 to 5,000 gallons per day.
The Maxi-Plant series (Sequencing Batch Reactor-SBR) treats wastewater flows from 5000 to 100,000 gal per day.
